Amphibious all terrain fire fighting vehicle

Products > Special Vehicle Series > Amphibious all terrain fire fighting vehicle

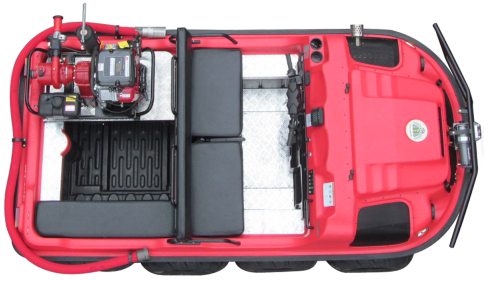

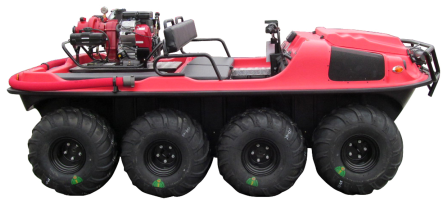

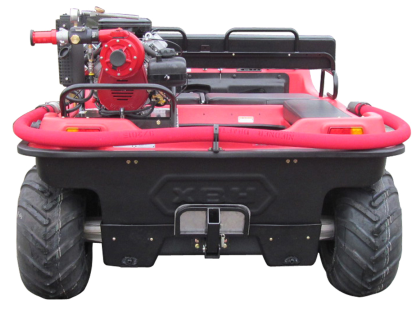

Amphibious all terrain fire fighting vehicle

Configuration description:

Portable Fire-pump

Water Mist Fire Extinguisher







Optional color(Up body):

Military green, Red, Orange, Black.



Matching models:

XBH 8×8-2(A), XBH 8×8-3(A)and

XBH 6×6-2(A): Portable fire-pump and water mist fire extinguisher  can be installed at the same time.

XBH 6×6-1: Portable fire-pump or water mist fire extinguisher is optional.

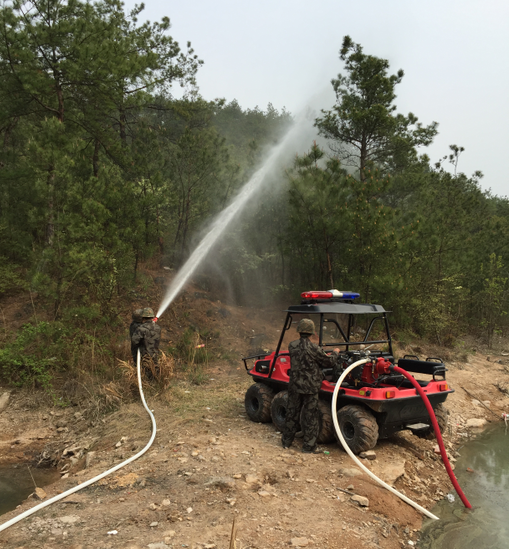

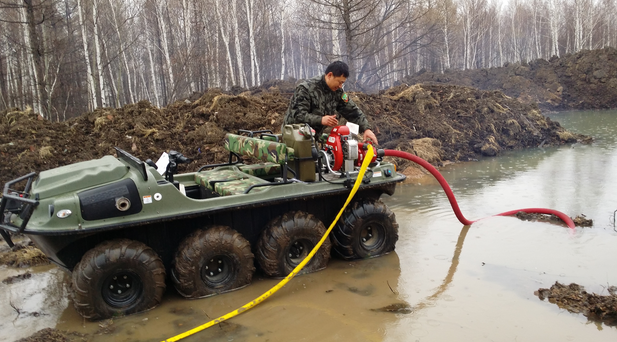

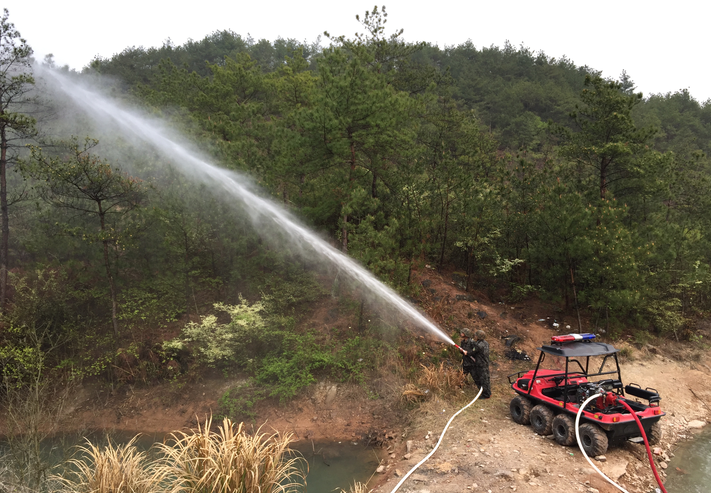

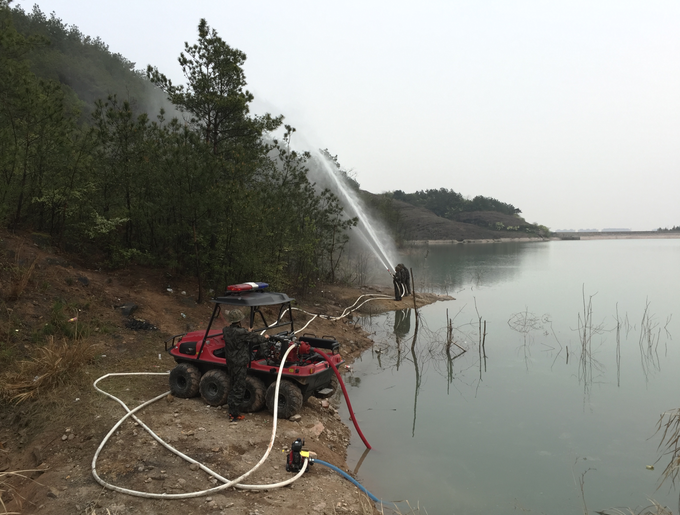

Application case:










Vehicle introduction:

Amphibious all terrain fire fighting vehicle is a special fire fighting equipment developed according to the actual needs of fire fighting in special environment. It uses the chassis of amphibious all-terrain vehicle. It has good climbing and cross-country performance, strong ability to cross obstacles, flexible operation, surging power, and can still run agilely under full load, and can adapt to all kinds of harsh terrain. It can travel freely in the complex terrain of communities, pavilions, scenic spots, beaches, jungles, mountains, snow, rivers, lakes, muddy wetlands, deserts and grasslands. It is the king who conquers all roads and can be called the all-round action tool. It has the advantages of flexibility and maneuverability in places where narrow roads, deep lanes and large fire trucks can not pass, especially in places where fire fighters and other fire trucks are difficult to get involved in fire fighting.

It can not only fight on land, but also operate on water. It can supply water remotely in water, and solve the problems of drainage and water supply in cities. It can transport both fire materials and fire fighters. It is an integrated fire fighting equipment with multiple functions.

Vehicles are equipped with efficient and energy-saving water mist fire extinguishing equipment and 13HP hand-lifted mobile fire pump, as well as other fire fighting equipment, which can cope with the relentless fire demon. It is an ideal choice for various fire extinguishing forms.



Technical Parameters and Performance of Fire Fighting Equipment:

Portable fire-pump parameters:

Model

BJ10A/G

Engine Type

Horizontal, single cylinder, electric, air-cooled,Four-stroke gasoline

Maximum Power

13HP (Honda)

Method of ignition

D.C.I

Lubrication

Forced lubrication system

Start way

Electric or recoil(Remote start is available)

Oil capacity

6.5L(4L/h)

Water pump

Single suction single-stage impeller

Vacuum pump

Carbon fibre oiled

Max. suction depth 8m

Priming time

≤15s

Suction diameter

φ65mm

Outlet diameter

φ65mm

Outlet performance

360L/min/0.6MPa

720L/min/0.4MPa

980L/min/0.2MPa

Portable fire-pump technology highlight:

Fire pump is composed of high-pressure pump and four-stroke air-cooled gasoline engine. It has the characteristics of light weight, compact structure, convenient start-up, rapid water output, low fuel consumption, high pressure, large flow, high lift, stable and reliable operation.

Fire pumps are equipped with maintenance-free batteries with electric starting function. Many equipments can be connected in series by special connecting tools to achieve the purpose of long-distance water supply. The equipment is equipped with an automatic charging device, which can charge the accumulator by itself during operation. The frame of the whole machine is matched by high strength frame and aluminium alloy handle. It can rotate 360 degrees and is convenient for handling.

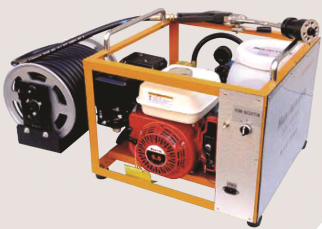

Water mist fire extinguisher parameters:

Model

XFY18/4-A

Engine Type

Honda GX160

Maximum Power output

5.5HP/3600rpm/min

Start way

Electric

Water pump

BROOWE

Pump type

FM430

Water jet flow

40L/min

Pump rated pressure

40Bar

Speed

650rpm

Transmission mode

Gearbox

Jet distance

15-20m

Water mist jet distance

12m

Hose length

40m(25-40m Optional)

Foam barrel capacity

15L

Water bag capacity

308L

Water mist fire extinguisher technology highlight:

The water mist is powered by Honda four stroke air-cooled gasoline engine. The pump is diaphragm type, with large capacity flexible water bag inside the car, equipped with foam automatic mixing system, fire hose and reel. The multi-function water mist spray gun can convert DC or spray mode at any time. The equipment has the advantages of light weight, compact structure, convenient start-up, fast water discharge, low fuel consumption, high pressure and large flow rate. It has the characteristics of high lift, stable and reliable operation.

Water mist not only has high efficiency, water saving, safe and environmental protection fire extinguishing function, its structure is reasonable, easy to use and maintain, but also has special functions of smoke reduction, temperature reduction and poison reduction. It can quickly isolate fire sources, effectively degrade and block smoke and poisonous gases in the fire scene, and form escape passages, which is conducive to evacuation and protection of firefighters'lives and safety.
