Special accessories-Lamp

Amphibious Emergency Rescue Series Vehicle is developed for the special requirements of customers and application occasions. It adopts amphibious all-terrain vehicle chassis. It has good climbing and cross-country performance, strong ability to cross obstacles, flexible operation, surging power, and can still drive agilely under full load, and can adapt to all kinds of harsh terrain. It can travel freely in complex terrain such as communities, pavilions, scenic spots, beaches, jungles, mountains, snow, rivers, lakes, muddy wetlands, deserts and grasslands. It is the king of conquering all roads, and it can be regarded as an all-round action tool. It can go deep into places where other special vehicles are difficult to reach for emergency rescue.

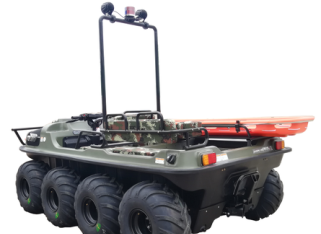

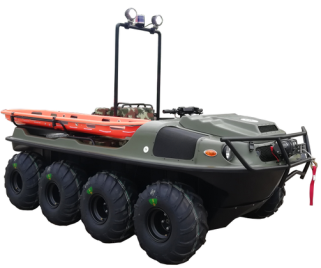

Vehicles have spacious backseat space, which can be used not only for the transportation of goods and personnel, but also for the installation of various fixing equipment and rapid replacement. Many kinds of lamps can be installed around the bumper, side-turning frame or body, such as alarm lamp, search lamp, working lamp, cross-country lamp, signal lamp and lifting moon lamp, to meet the needs of different customers and application occasions.

Optional color（Up body）:

Military green, Red, Orange, Black.

Applicable models:

l XBH 8×8-2（A）

l XBH 8×8-3（A）

l XBH 6×6-2（A）

l XBH 6×6-1（B）

Voltage:AC220V, Power:1000W×2

Controls: hand-operated switch,50m remote control

Luminous flux:9600lm×2

Lighting radius:150m

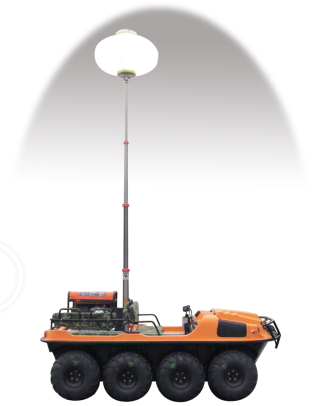

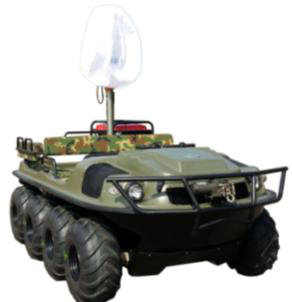

Pneumatic liftable light:2500～4500mm（height）, well sealed and can hold for 24 hours,  fine    appearance, smooth elevation

Fast starting:Light bulb fast expands to be ready within 45 seconds

Long life span:12000h

Wind resistance:≤7grade

Pitch :≤10 degree

Level of protect:IP54

Environment protection:No pollution

Anti-dazzling:No shadow in a large 360°area; do not cause dazzling for drivers passing by and visible from far away.

Main parameters of power supply device:

Output power without emergency lighting:5.5kW

Output power with emergency lighting:3kW

AC220V outlet can be provided upon requested.

Functionality:

To provide emergency lighting and power supply for rescue vehicles on land or water operations.

Applications:

Night operations, emergency repairs, disaster rescue, fire-fighting, crime scene evidence-taking, traffic control, Ad shooting, etc.

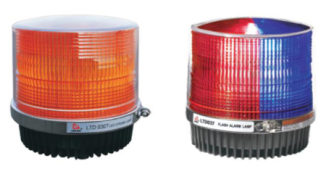

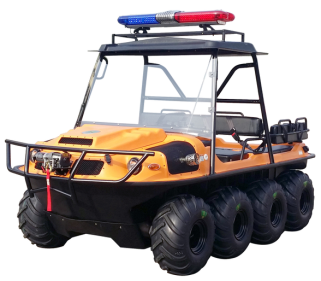

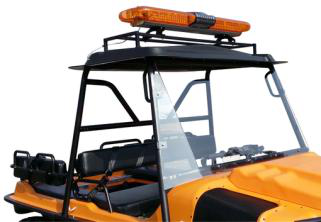

The warning light is powered by DC12V power supply, and the lampshade is made of imported polycarbonate (PC). It has the characteristics of high transparency and strong impact resistance. The color of the lampshade at both ends is red, blue and transparent for users to choose. The lamp structure has the functions of waterproof and dust-proof. The warning light has built-in alarm and Nd-Fe-B magnet speaker, which is easy to install. The main light source adopts high brightness and high color LED-40 lamp group, which has the characteristics of long life, high efficiency and energy saving, strong resistance to background light and fog shock.

Application classification:

Public Security: Red and Blue

Engineering: All Yellow

Fire Fighting: All Red

Hospital: All Blue

Road: red, yellow and blue

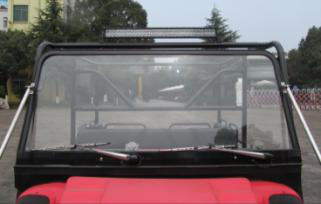

The utilization rate of light efficiency can reach 90% by using the technology of mixed reflective lens.

Concentration, flooding and mixing are optional.

Stainless steel brackets and impact-resistant PC masks are used to ensure that they can be used in harsh environments.

Ultraviolet-resistant polyester powder spraying process was adopted.

Waterproof grade up to IP67.

It contains adjustable and shock-proof brackets and installation tools.

It is the best choice for night outdoor work.

It can be installed in a striking position as required.

Different colors (such as white, yellow, etc.) can be selected according to the need.

Various flicker modes can be edited.

It is the best choice for rescue or outdoor applications.

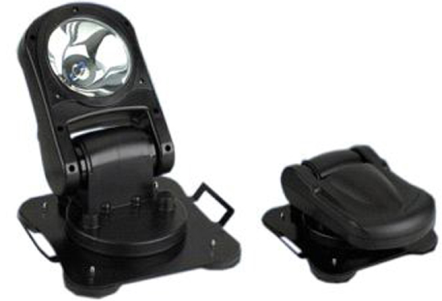

Light source: HID Xenon light source (built-in stabilizer)

Power: 35W(55W Custom-made)

Iinput voltage: DC12V

Luminous Flux: ＞3200lm

Average Service Life: ＞3200hours

Illumination Distance: 1000m

Effective Remote Control Distance: 30-50m

Adjustable Rotation Angle: Horizontally 360 º, Vertically 180 º

Product characteristics::

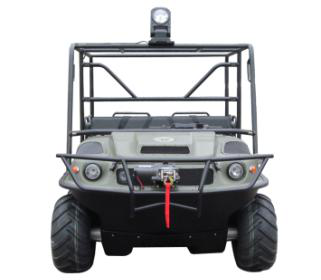

The shell adopts optimum design; has strong impact resistance; rainproof design is more resistant to harsh environment; the base has magnetic sucker and rubber anti-skid particles, which adsorb on the roof of the car without damaging the paint.

Equipped with wireless remote control, up and down 180 degrees, about 360 degrees remote control, simple installation, simple operation!

The high brightness remote control searchlight uses 35W ultrawhite light source, and its brightness can reach 3200 lm. High concentration, high intensity.

The lamp head is open and closed, and can be covered when not in use. The existence of wind resistance can be basically ignored after the lamp head is covered. Lie flat on the roof of the car will be very windy and personality.

Application scope:

Home Safety System, Outdoor Activities, Entertainment Activities, Safety Lighting, Emergency Lighting, Emergency Lighting, etc.
