Special accessories-Outboard motor

Amphibious Additional Function Series is developed for the special requirements of customers and application occasions. The chassis of amphibious all-terrain vehicle is adopted. It has good climbing and cross-country performance, strong ability to cross obstacles, flexible operation, surging power, and can still drive agilely under full load, and can adapt to all kinds of bad terrain. The body is made of modified plastics with light weight, high strength, high impact resistance, full sealing and excellent weather resistance, which can meet the requirements of vehicle running on water and land.

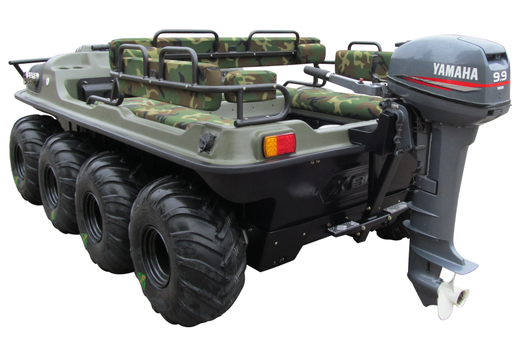

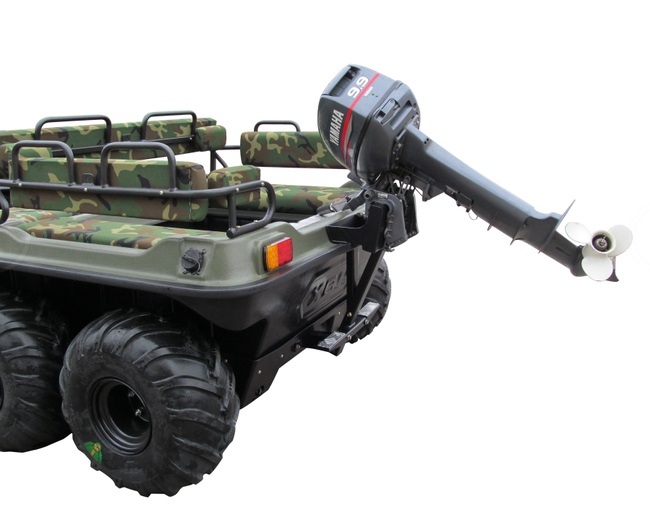

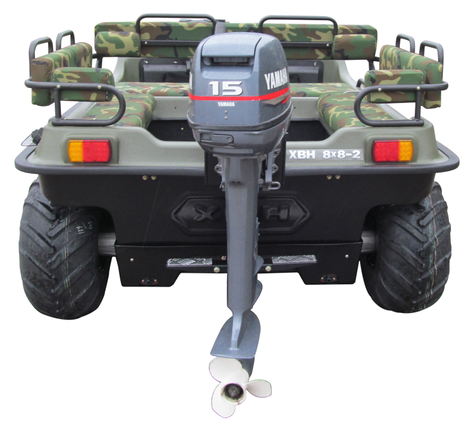

In order to improve the speed of the vehicle on water, besides Jet propelled vehicle, it can also achieve rapid propulsion by hanging the outboard motor, and can be removed at any time when not in use.

Optional color（Up body）:

Military green, Red, Orange, Black.

Applicable models:

l XBH 8×8-2

l XBH 8×8-3

l XBH 6×6-2

l XBH 6×6-1

Power：15-30HP

Brand：Unlimited

Use precautions(Take the Yamaha two-stroke as an example):

Ø Before the first use of the new machine, check whether the tubing is connected and whether the oil is added to the gasoline; Gasoline and oil ratio: during the running-in period, the ratio of gasoline to oil is 25:1, 10 hours, and after running-in, the ratio of gasoline to oil is 50:1; check whether the gear is in neutral position, open the air valve when the engine is cooled, adjust the throttle to the marked position and then start.

Ø When starting, the machine should be put into the water. It can't start the machine on shore. Because the outboard machine is water-cooled, water-free starting will cause serious damage to the pump and the machine.

Ø Pay attention to the usual use: check whether there is cooling water, whether gasoline has added oil, these two points can make the machine prolong its service life.

Ø Special oil shall be selected according to the type of outboard engine.

Ø Maximum throttle continuous operation time should not exceed 30 minutes, otherwise it is easy to burn piston and cylinder.

Ø It is forbidden to start operation in weedy shoals, to melt reefs and to run aground, all of which are liable to damage the gear of the main engine, and to malfunction the cooling water system due to poor water quality.
