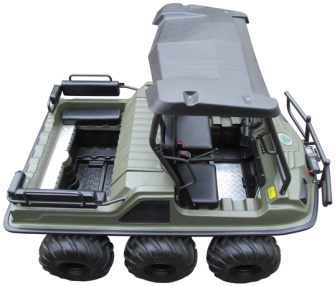

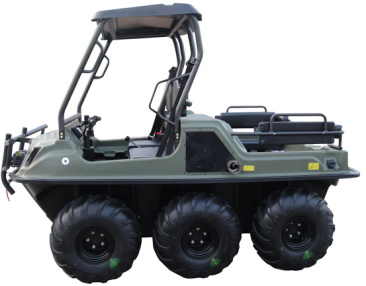

XBH 6×6-1 Vehicle Introduction

Optional accessories example:

Rubber track


Car cover








Optional colorUp body:

Military green, Red, Orange, Black.



Technical Specifications:

Body Parameters:

Dimension

2170×1720×1980mm

Wheel Base

730+730mm

Track

1420mm

Minimum Ground Clearance

214mm

Complete Vehicle Kerb Mass

680kg

Rated Load

On Land:400kg4 People

On Water:260kg2 People

Performance Parameters:

Start Mode

Key

Ignition Mode

EFI

Battery Specification

12V/60Ah

Drive Mode

On Land: All-wheel Drive  On Water: All-wheel Drive or Outboard Drive

Top Speed

On Land:45km/h         On Water: 5km/hTyre Strokeor 12km/h15HP Outboard

Minimum Turning Radius

0.71m

Maximum Climbing Angle

32 º

Approach Angle

50 º

Departure Angle

46 º

Brake Mode

Caliper Hydraulic Brake

Tyre Specification

25×12(11.5)-9NHS

Tyre Pressure

5-7psi (34.5-48.3kPa)  With Track: 3-5psi20.7-34.5kPa

Transmission Mode

Belt and Chain Transmission

Dynamic Parameters:

Engine Model

SQRB2G06

Engine Type

Vertical 2-Cylinder, Water-cooling, 4-Stroke, Inline DOHC

Oil-supply Mode

MPI

Cylinder Diameter ×Stroke

2-72×72mm

  Displacement

586ml

Compression Ratio

9.5:1

Rated Power and Turning Speed

26kW5500r/min

Max. Torque and Turning Speed

52N·m30003500r/min

Idle Speed

1000±60r/min

Lubricating Mode

Pressure and Splash Lubrication

Cooling Mode

Forced Circulation and Antifreeze Coolant

Clutch System

CVT

Transmission Type

CVT+2 Forward Gears, Neutral, Reverse Gear

Fuel Type

Gasoline 93#

Oil Tank Capacity

38L

Optional Equipment:

Bumper, Winch, Drain Equipment, Traction Ball Head, Safety Belt, Rear Foot Pedal, Outboard Motor,  Track, Foldable Windshield, Anti-roll Rack, Top, Vehicle Cover, Alert Lamp, Combination charging socket, Snow Plough, Breakwater Board etc.
